Portable Weighbridge – Flexible & Fast Vehicle Weighing Solution
High-performance portable weighbridge systems for accurate, fast, and cost-effective truck weighing.
What is a Portable Weighbridge?

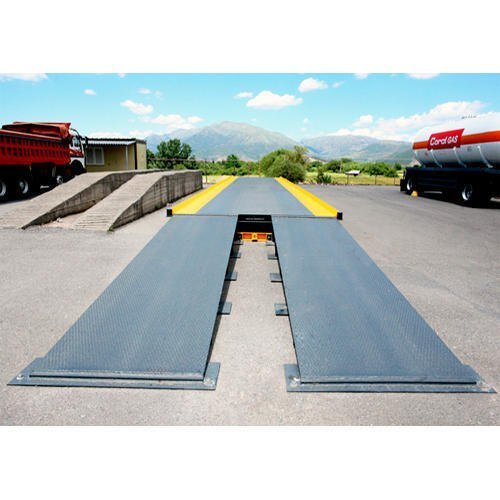

A portable weighbridge is a movable vehicle weighing system designed for quick setup and easy relocation. It is an ideal solution for industries that require temporary or on-site weighing without permanent civil construction.
Our system uses advanced load cell technology to ensure precise and reliable measurements. This mobile weighing solution is widely used in construction sites, mining operations, and remote locations where flexibility and fast installation are essential.
All weighbridges are designed in accordance with standards set by the Bureau of Indian Standards (BIS), ensuring accuracy, durability, and compliance.
“All weighbridges are designed as per standards set by the Bureau of Indian Standards (BIS).”
Key Features of Portable Weighbridge
01
Quick installation with minimal site preparation
02
Modular and relocatable structure
03
High accuracy digital load cells
04
Durable and weather-resistant design
05
Suitable for heavy truck weighing
06
Low maintenance and long service life
Benefits of Using Portable Weighbridge
A portable weighbridge is a cost-effective solution for temporary and mobile weighing needs.
- No heavy civil foundation required
- Easy transportation and relocation
- Saves installation time and cost
- Ideal for short-term projects
- Flexible and scalable system
Technical Specifications of Portable Weighbridge
| Parameter | Specification |
|---|---|
| Capacity | 20 Ton – 100 Ton |
| Platform Length | 6 m – 18 m |
| Platform Width | 3 m – 3.5 m |
| Load Cell Type | Digital / Analog |
| Accuracy | ±10 kg to ±20 kg |
| Material | Mild Steel / Steel Structure |
| Installation Type | Surface Mounted |
| Power Supply | 220V AC / Battery Backup |
| Operating Temperature | -10°C to 60°C |
| Display System | Digital Weight Indicator |
Portable Weighbridge Installation Process
01
Site Preparation : A flat and compact surface is selected with minimal groundwork.
02
Base Setup : Steel plates or a concrete base is placed for stability.
03
Platform Placement : Modular weighbridge platforms are positioned and aligned.
04
Load Cell Installation : High-precision load cells are installed and connected.
05
Electrical Connections : Indicator, junction box, and cables are configured.
06
Calibration & Testing : The system is calibrated to ensure accurate weight readings.

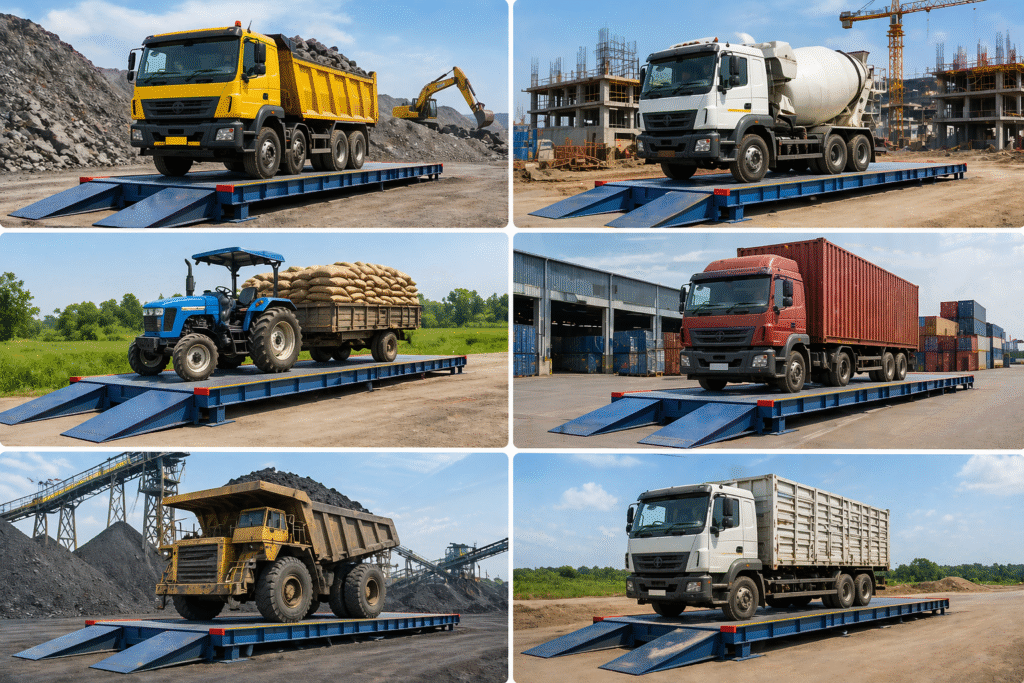

Applications of Portable Weighbridge
- Construction sites
- Mining industry
- Agriculture and farming
- Logistics and transportation
- Infrastructure and road projects
- Remote industrial locations
Why Choose Our Portable Weighbridge?
Precision-engineered systems
Competitive pricing
Customizable configurations
Fast installation and support
Easy & fast relocation
Strong after-sales service network
Frequently Asked Questions
Q1. How long does it take to install a portable weighbridge?
Installation usually takes 1–2 days depending on site conditions.
Is a portable weighbridge accurate?
Yes, modern systems provide high accuracy similar to permanent weighbridges.
Q3. Can it be relocated easily?
Yes, it is designed for easy relocation and reuse.
Q4. What is the price of a portable weighbridge in India?
The price depends on capacity, size, and specifications. Contact us for a customized quote.
